R-LOC®
Industrial Cable Glands

Ingress Protection

It is essential when selecting cable glands and/or accessories to ensure that the products will maintain the IP rating of the equipment and the integrity of the installation.

IP codes are based on the IEC Standard 529, degree of protection provided by enclosures. In most cases R-LOC cable glands will maintain Ingress Protection of the equipment into which they are installed to, please see RPG Cable Gland brochure for details.

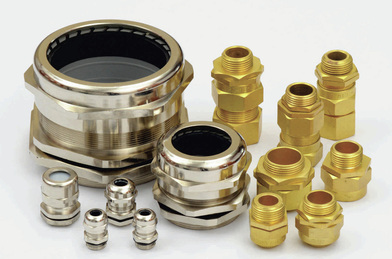

Cable Glands - Brass & Nickle Plated

---

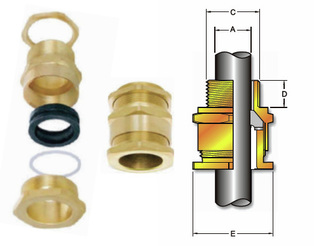

A1/A2 Industrial Cable Gland

R-LOC A1/A2 type brass indoor and outdoor cable gland for use with all types of unarmoured cables, providing mechanical seal on the cable outer sheath.

A1/A2 Industrial Cable Gland

---

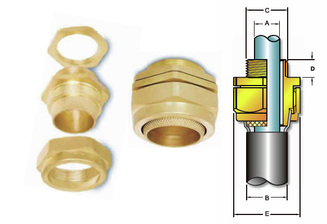

BW Industrial Cable Gland

R-LOC BW type brass indoor cable gland for use with all types of Single Wire Armour (SWA) cable providing mechanical cable retention and electrical continuity via armour wire termination. The R-LOC BW range of industrial cable glands is designed and tested to BS6121:2005

BW Industrial Cable Gland

---

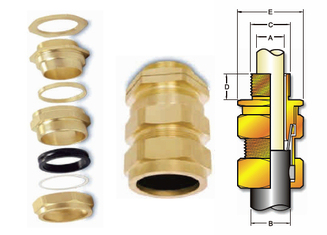

CW Industrial Cable Gland

R-LOC CW type brass indoor and outdoor cable gland for use with all types of Single Wire Armour (SWA) cable, providing seal on the cable outer sheath. The cable gland also provides mechanical cable retention and electrical continuity via armour wire termination. A detachable armour cone and clamping ring arrangement allows the cable to be easily disconnected from the equipment, for
maintenance and change out etc.

CW Industrial Cable Gland

---

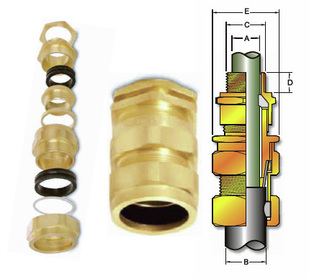

E1W/F Industrial Cable Gland

R-LOC E1W type brass indoor and outdoor cable gland for use with Single Wire Armour (SWA) cable providing seal on the cable inner sheath and the cable outer sheath. The cable gland provides mechanical cable retention and electrical continuity via armour wire termination. A detachable armour cone and clamping ring arrangement allows the cable to be easily disconnected from the equipment, for maintenance and change out etc. Used popularly in most climatic conditions weatherproof and waterproof.

E1W/F Industrial Cable Gland

---

RPG Cable Glands.pdf
File Size:	1191 kb
File Type:	pdf

Download File

---
