Rotary and Linear Motion Solutions for Harsh Environments
 CDA Intercorp LLC |
 Scotland Electronics International Limited |
|

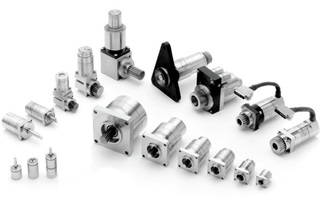

CDA InterCorp drives provide rotary or linear actuation with maximum performance. High grade stainless steel modular construction ensures continuous unit performance under the most demanding conditions. CDA designs meet the harshest environmental conditions, including cryogenic applications. BPM motors are constructed with rare earth samarium cobalt magnets. Stationary stator with outside windings for minimum thermal resistance, power outputs up to 5Kw and operating efficiencies of 90%. Position transducers with direct absolute position feed back.
|
Scotland Electronics International Limited high performance motor drives have been developed for harsh environment and other specialist markets. The motor drive products are designed, manufactured and tested by a dedicated multi-disciplined team who provide unmatched customer application support. SEIL Motor Drive products have the performance and capability to be the best in market solutions for harsh environment motion control applications, coupled with competitive pricing.
|
 CDA Actuators |
 SEIL Motor Controller |
|
CDA geartrains with high torque capacities of up to 1129 Nm. Single or multiple stage gear-head with sizes ranging from 19mm to 102mm in OD. Geartrain operating efficiencies of 95% and ±3 arc minute backlash attained with AGMA quality 12 Involute tooth form. Adjustable electro/magnetic brakes with static or dynamic torques of up to 2.1Nm. Customer specified outputs also available. MIL-STD-810 Qualified.
|
Inherent in the SEIL motor drive products design is technical excellence, performance, ruggedness and reliability. In order to achieve this, the motor drive products employ a modular building block philosophy, which allows maximum reuse of qualified product design. This allows prototype SEIL motor drive products to be developed for specific applications and rapidly introduced to production in order to support client program requirements.
|
